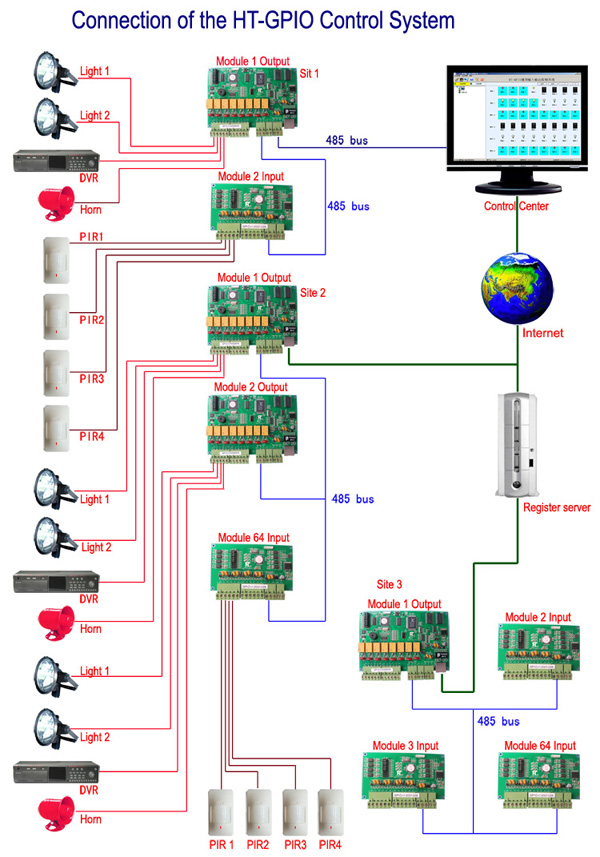

HT-GPIO general purpose input and output control system consists of control software, input modules and output modules, the output module can be a master module for connecting the control center can also be configured to output control only the sub module for use. Output module has 8 jumper settings normally open / normally closed switch output control interface, 8-channel input module software settings normally open, normally closed input interface. A control point via RS232 / 485 bus can be connected to 64 input and output modules, the control center can be connected to control various points through RS232 / 485 serial port or network.

Product Name Product Type Explanation
Input Module HT-GPIO-1 8 input interface 485 is connected, a jumper recognition
Output Module HT-GPIO-O Network interface control center, 8 outputs, 485 expansion connector, jumper recognition
Output Module HT-GPIO-OS 8-channel output interface 485 connected to the main module, jumper recognition
Video Lighting Controller HT-RDS2000 Network interface control center, 8 outputs, 485 expansion connector, jumper recognition
● Control of Major output module 10 / 100M adaptive Ethernet interface RJ45 network connection control center
● Automatic network connection, reconnection time setting
● Control Point Control Center via the registration server connection settings
● A control point can be connected to control 64 input and output modules via RS485 bus
● Output RS485 serial bus master module deputy, connect the control point other extended input and output modules
● Output Module Settings Jumper limit setting, upgrade, log
● Output module reset button to restart the module to restore the factory default
● Output module buzzer tone prompts variety of working conditions
● Search software search, modify, set the control points in the network parameters
● System set up a custom Control Center name, set the registration button to display the number of rows to display module name
● User management to set the user name, password, and the operating authority
● Custom control point, module, channel name and display icon
● Automatic network connectivity options, to disconnect and reconnect time setting
● Automatic search control point connecting the input and output modules, select Enable
● group settings. The different control points, different modules channels into groups for easy viewing, control
● Associated settings, set the input output control association, association group control, output automatic recovery time
● Control Software Remote control front-end output operation, display input and output status
No. Project The main technical parameters
1 Fi Master module a 10 / 100M adaptive Ethernet RJ45 network interface connection
2 Extended connection A master module can be connected via RS485 bus, control 64 input and output modules, jumper recognition
3 Input Interface An input module 8 software settings normally open, normally closed Interface
4 Output Interface An output module 8 switch normally open output interface
5 Lights Power, watchdog indication, 8 inputs, 8 outputs indicating the network connection instructions
6 Setting limits Module address is set, the master, the slave settings, limit setting, upgrade, log
7 Reset Output module reset button to restart the module, press 5 seconds to restore the factory default
8 Beep Output module buzzer tone prompts variety of working conditions
9 Rated voltage DC12V
10 Current consumption Output module 350mA, 25mA input module
11 Module Size Output module 152 × 115mm, the input module 115 × 78mm
12 Controller size HT-RDS2000 video, lighting controller: 270 × 270 × 75mm

13

 Work Environment Temperature: 0 ~ 55 ℃, humidity:10～90%
