Input Interface HT-SES security equipment monitoring center access control points of the network connection through the alarm output front-end control points HT-SES security equipment monitoring terminals, video hosting, access control systems and other security devices and infrared detectors SES monitoring terminal, and SES monitor output terminal can be connected DVR, light, siren and other equipment. The current terminal is connected equipment failure alarm, alarm information through the SES monitoring terminal and the network connection to the control center when the center receives the alarm message, will activate the associated device is connected to the monitoring point of the motion path, open light, video recording while loud alarm sound and the like.
Hard choose to set a VCR device monitoring motion detection, video loss, alarm signals, equipment malfunction (including hard disk space, disk IO error, network errors, IP conflicts, video exception, unauthorized access, high temperature alarm, etc) alarm output interface DVR alarm output access SES input interface, can be connected via the USB interface conversion module, power supply monitor DVR, alarm output alarm SES monitoring terminal can be linked to control a variety of other alarm equipment.


● Monitoring center monitor point SES monitoring terminal connected via LAN / registration server
● SES monitoring terminal monitoring points can be connected via RS485 bus extension, control GPIO input and output modules
● System set up a custom Control Center name, set the registration server, network reconnection time, log and data information is saved for several days, the number of days to display the data, information bar and buttons to display the number of rows, the display module name, event color display
● User management to set the user name, password, and the operating authority
● Device user management, set up monitoring point device user details information
● Search software search, modify, set the control points in the network parameters
● monitoring point name, network / serial and IP / serial number selection, user accounts, user name / password settings
● input and output modules automatic search control point is connected, select Enable
● custom module, channel name, alarm and withdrawal of police information, related equipment type selection, display icons and alarm sound
● group settings, the different control points, different modules of passage into groups for easy viewing, control
● Associated settings, set the input output control association, association group control, output automatic recovery time
● alarm time policy setting, alarm output settings, the phone number set up, GPRS settings
● video linkage, track, video packet, inspection, recording, playback
● Date Event recording events, time, event source, channel, event type, event description and Alarming information
● event queries based on time and various types of information query, statistics, print, export
● Not Alarming Alarming list displays information not directly Alarming
● dongle upgrade attorney
● monitoring center remote control front-end equipment output operation, display input and output status
No. Project The main technical parameters
1 Central connection A 10 / 100M RJ45 adaptive network interface monitoring center
2 Extended connection An RS485 interface can be extended to connect 61 GPIO input and output modules, address jumpers recognition
3 DC Detection An DC detection interface detects the battery status, low voltage alarm
4 AC detection An AC detection interfaces, AC / DC automatic conversion, power / recovery report
5 Tamper alarm An tamper alarm interface, open alarm
6 Input Interface 16 switch inputs, the software settings normally open / normally closed
7 Output Interface 8 switch output interfaces, jumper settings normally open / normally closed, ≤500mA, Output indicator
8 Reset A reset button, press the button, Reset by more than five seconds and five seconds to restore the factory default
9 Status Indication Network status, the watchdog indicates operational status of the network and devices
10 Hardware limitations Jumper limit network settings, software upgrades, login authentication
11 Rated voltage DC12V， power consumption: ≤5W
12 Current consumption HT-SES：350 mA，GPIO-0：300mA，GPIO-I：80mA

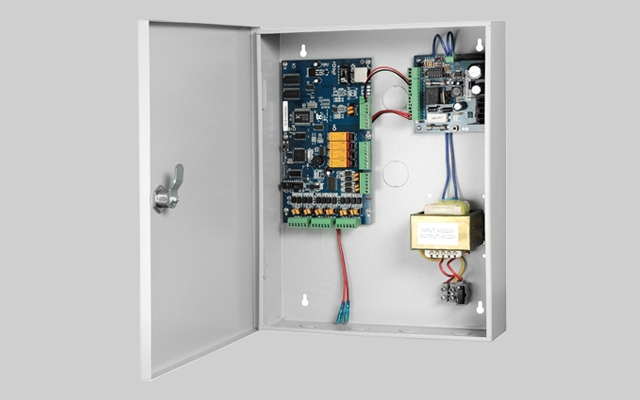

13 Terminal size 350×270×75mm
14 Module Size HT-SES module:110×190mm，GPIO-I：115×78mm，GPIO-0：152×115mm
15 Work Environment Temperature: 0 ~ 55 ℃, Humidity: 10～90%
