HT-IVD intelligent vibration sensor mounted on the building's walls, floors, or bank ATM machine, when an attempt to hit the criminals hit the wall, dig into the bank vault or smashing knock ATM machines, vibration generated will cause HT -IVD vibration detector output alarm signal to the police.
Hengtong Intelligent Vibration detectors can be installed in a variety of environments, the user depending on the installation environment of the detector settings, and flexible set the detector to better adapt to the environment of the installation box, to avoid false positives.

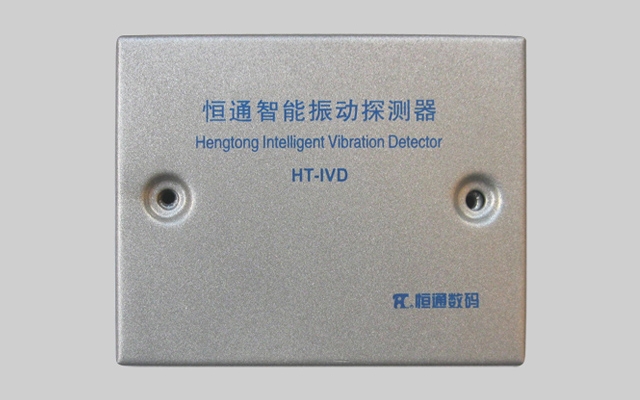

HT-IVD Openings
● Built-in dual detector tamper switch, open alarm
● Switch Tamper alarm output interface
● switch alarm output, normally open, normally closed jumper settings
● separation, mixing alarm output mode selection
● 485 communication interface, the transmission of information
● high hardware sensitivity, medium, low, or select Custom settings
● tools, small efforts, major efforts alarm settings
No. Project The main technical parameters
1 Tamper 2 tamper switches, open alarm
2 Tamper output A switch tamper output interface, tamper alarm when open
3 Alarm Output 2 switch alarm output interface, ≤500mA, normally open, normally closed jumper settings
4 Communication Interface 485 communication interface, the transmission of information
5 Sensitivity settings Jumpers high, medium and low, select Custom settings
6 Alarm mode Separation, mass selection
7 Alarm output selection Tools, small efforts, major efforts to choose
8 Power supply DC12V
9 Product Size 80×100×26mm
10 Work Environment Temperature: 0 ℃ ~ 55 ℃, Humidity: 10%～90%
