HT-UDI body detector ultrasonic diagnosis based on the principle of echo time, echo time of the ultrasonic testing, and get the actual detection range, when the distance is less than the actual probe set detection range, the detector switch relay, joint control other devices .
Products for ATM protection cabins and other human body detection tips, alarm, linkage.

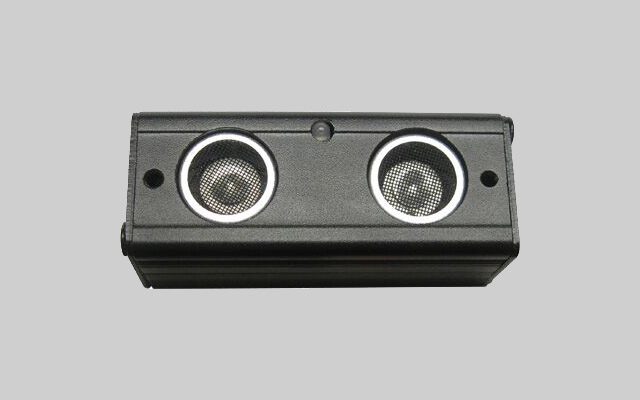

 HT-UDI Positive
● Custom detection range: 750 ~ 1500mm 16 paragraph detection range jumper selectable settings
● Switch relay outputs, joint control of other equipment movement
● RS485 communication interface to send alarm information to the system
● RS485 communication address jumper settings
● status indicators show normal operation, the invasion and error status
No. Project The main technical parameters
1 Relay output A normally open switch relay output interface, the action is closed
2 Communication Interface A RS485 bus communication interface
3 Address Settings Two jumpers A1 ~ A0 set four RS485 bus address
4 Detection range 4 Set jumpers D0 ~ D3 set 16 of 750 ~ 1500mm detection distance
5 Status Indication Instruction starts, normal, intrusion, error status
6 Retained Interface 2 Retained Interface
7 Operating Voltage DC12V
8 Product Size 88×62×31mm
9 Working temperature 0～＋55℃
10 Working humidity 10～90%
