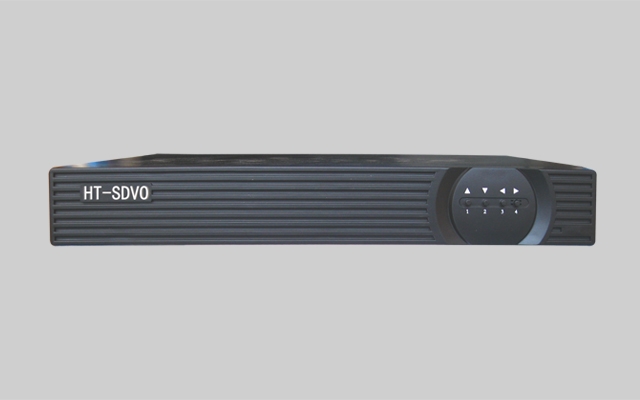

Digital information HT-SDVO SD video overlay will RS485 input and two signs clear video input added together, through the video output is displayed on the monitor, the video image is displayed in PIP form, the device can handle four group information superimposed.
● SD dual video inputs
● Digital video automatically add
● SD video output connectors
● four groups of input and output interfaces work
No. Project The main technical parameters
1 Manual version HT-SDVO V1.0
2 Network Interface RJ45 interface, 10 / 100MHz adaptation, upgrade or set up communication
3 Communication Interface 4 RS485 interfaces, each group a, input information, OSD display
4 The main video input 4 main video inputs, each group a
5 Secondary video input 4 times a video input interface, each group a superimposed display
6 Video output 4 video output interfaces, each group a connection monitor or DVR
7 Instruction 2 power indicator light, indicating power supply status
8 Power supply 1 DC12V power input interface, as positive
9 Power ≤40W
10 Group selection 4 Group selection key, select Settings group
11 Set switch Down about 4 set switch button, toggle settings
12 Product Size 310×225×45mm
13 Temperature 0℃～55℃
14 Humidity 10%～90%
