HT-EDS environmental monitoring system consists of data acquisition module, a variety of sensors and transmitters and monitoring software. Data acquisition module has 8 inputs and a data acquisition 485 serial port that can access eight sensors can collect current, voltage, temperature and humidity, pressure and other sensors, transmitters, data transmitted to the monitoring center through the network.
Environmental Monitoring Center software is embedded in the mapping software, the user can be set in the map software, monitor, and receive information.
● current, voltage, temperature and humidity, pressure and other sensors, transmitters access
● 8 input ADC data acquisition interface access sensors, transmitters
● RJ45 interface to connect to the network data transmission network
● ADC 485 port or collect temperature and humidity data
● software embedded in the map software, and alarm, video, access control and other integrated monitoring
● Automatic connection, connect manually select, ensure that the network connection
● alarm monitoring point range setting, value alarm, remote alarm voice settings

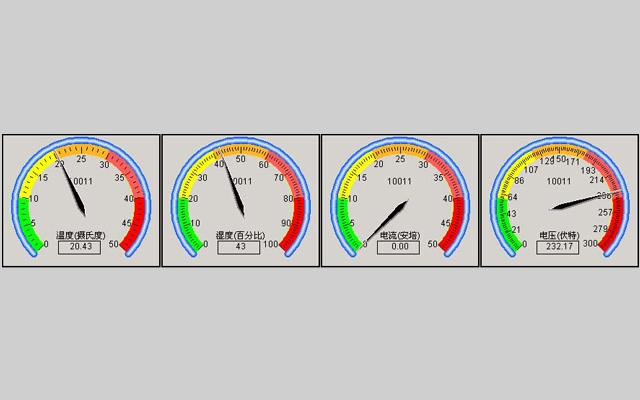

● Instrument customized visual display, the color scale segment display
● Alarm output SMS notification settings
● timing manually, checking the system time
● History query, display
No. Project The main technical parameters
1 Data collection mouth 8个ADC口
2 Acquisition Range 4-20mA
3 Data Range Temperature: 0 ~ 50 ℃, Humidity: 0 ~ 100% RH, voltage: 0 ~ 250V, Current: 0 ~ 100A
4 Serial port 485 temperature and humidity data acquisition
5 Fi 1 RJ45 10 / 100M adaptive network interface automatically connect, connect manually choose
6 Data transmission LAN
7 Operating Voltage DC12V,power consumption: ≤5W
8 Product Size Module: 110 × 75mm, the controller: 400 × 300 × 100mm
9 Working temperature 0～55℃
10 Relative humidity 10～90%
