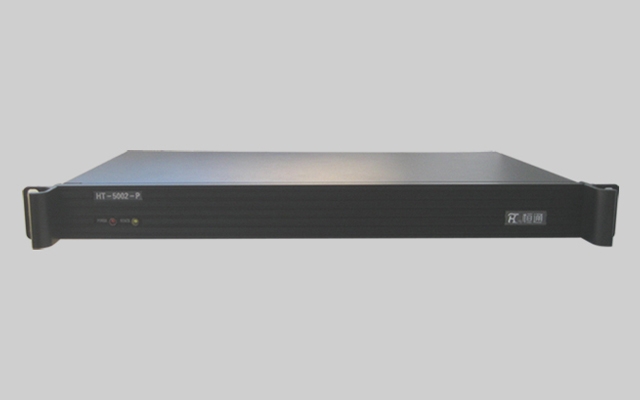

HT-5002 IP intercom access system network intercom system via the network to receive instructions to the public telephone network dial-up, make intercom system connecting the terminal with the telephone system, make a call.
Under normal circumstances, HT-5002 can be connected to the telephone call, when the call HT-9502 HT-5002 when, HT-5002 will cut off the call line is dial the telephone number in the "off-line call setting", and make a call; telephone access It can also be made into HT-9500 terminal server call caller ID and HT-5002 called ID, and then allocate input from HT-5002 HT-5002 SDK software via the telephone number dialed after phone calling terminal and the called terminal you can make a call.


Telephone Access System
● RJ45 adaptive 10 / 100Mbps adaptive Ethernet network connection
● support telephone line connection to the public telephone network work
● make calls, connect to the network via a network intercom intercom systems and telephone networks
● Fixed dialing phone numbers, quickly and directly
● SDK temporary telephone number is entered dialing, flexible
● two normally open dry contact output to control external relay
● two shorted input for receiving an external control signal input device
No. Project The main technical parameters
1 Network Interface Standard RJ45 input interface
2 Network protocol TCP/IP、UDP、ARP、ICMP、IGMP
3 Network chip rate 10/100M
4 Telephone line interfaces 1 channel telephone line interfaces
5 Phone interface 1-way phone interface
6 Phone Dialer DTMF
7 Short circuit input 2-way dry contact shorted input, or NC software settings
8 Short-circuit output 2-way dry contact output short circuit, normally open and normally closed software settings
9 Product Size 428×250×45mm
10 Working temperature -10℃～60℃
11 Working humidity 10%～90%
12 Rated voltage DC12V
13 Power ≤30W
